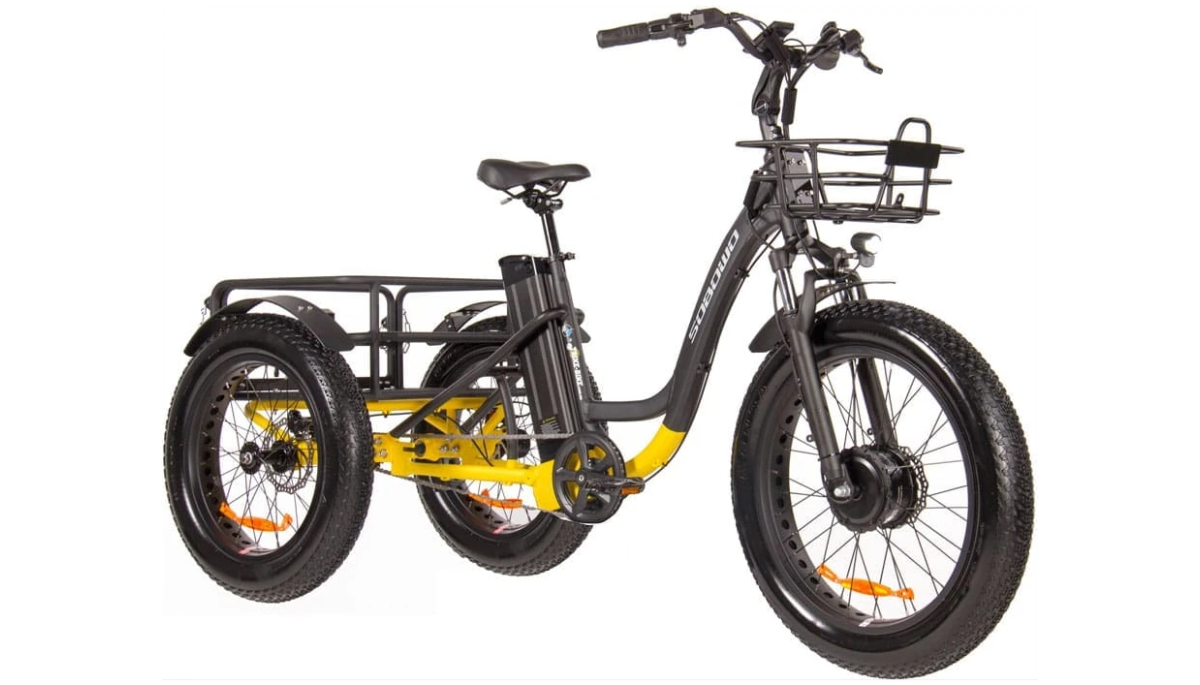

Sobowo Fat Electric Trike Bike (2024)

This fat tricycle by Sobowo is the absolute pinnacle of quality in the adult tricycle market. These products are ordered and assembled to order.

Featuring

• 4 inch wide fat tires
• Front Suspension
• 500 watt front motor
• Pedal assist and throttle
• Large front and rear baskets,
• Colour handlebar display with sunlight readable information
• Hydraulic disk brakes
• Supports riders up to 150 kgs

Sobowo Trike Bikes have received NDIS approval, making them eligible for Assistive Technology funding under NDIS support packages. Individuals facing disability or mobility challenges may qualify for financial assistance to acquire this remarkable Electric Tricycle.

Specifications

Sobowo Fat Trike Bike Specifications

Electrics
Motor Voltage: 48V
Motor: 48V 500W Bafang Front Hub Motor
Electronic Controller: Lishui Intelligent Brushless Controller
Battery Capacity: 48V 15Ah/720Wh Li-ion Battery
Battery Features: Locks to frame, capacity check gauge and USB charging outlet
Charger: AC240V, 2A Smart Charger
Typical charging time: 2-6 hours

Maximum Speeds
Road Setting: 0-25 km/h
Off-Road Setting: 0-27 km/h
Walk Mode: 4.5 km/h

Operations
Off Road: Twist Throttle
Speed Settings: 5
Range: +40 kms
Walk Mode: 4.5 km/h

On Road: Pedal Assist
Speed Settings: 5
Range: +55 kms
Walk Mode: 4.5 km/h

Tricycle Features
Brakes: Zoom Hydraulic Disc Brake Calipers on all 3 wheels
Brake Lever: Alloy 4 finger, Zoom Hydraulic Brake Levers with Power Cut-off and Parking Brake

Display
Multi Function Display: UKS2 LCD Colour Display with USB charger outlet
Operated through handlebar mounted keypad

Lighting
LED Headlight, LED taillight with brake function

Wheel Details
Front Rim: 24” x 4.0″ Fat Tyre
Rear Rim: 20” x 4.0″ Fat Tyre
Mudguards: Font and rear wheels

Bottom Bracket
Sealed bearing bottom bracket with Rothwell aluminium cranks and Wellgo oversize pedals

Safety
White reflector on front, red reflector on rear and yellow reflectors on all wheels, bell fitted. LED Headlight, LED taillight with brake function, Complies with Australian regulations

Loads
Recommended Rider Weight: up to 150 kgs
Load Capacity Front Basket: 10 kgs (fitted to frame – no effect on steering)
Load Capacity Rear Basket: 50 kgs

Tricycle Dimensions
Overall length: 190 cm
Handlebar width: 70 cm
Overall width: 80 cm
Typical handlebars height: 120 cm

Weights
Net Total: 39 kg (Assembled and ready to ride with all accessories fitted)

Gender and age
Unisex, Ages >12
Lowest seat to pedal height is 72 cm

Warranty

All Trike Bikes manufactured by Sobowo carry the following warranties…

• Frame – 2 years
• Motor – 18 Months
• Electrics – 1 year
