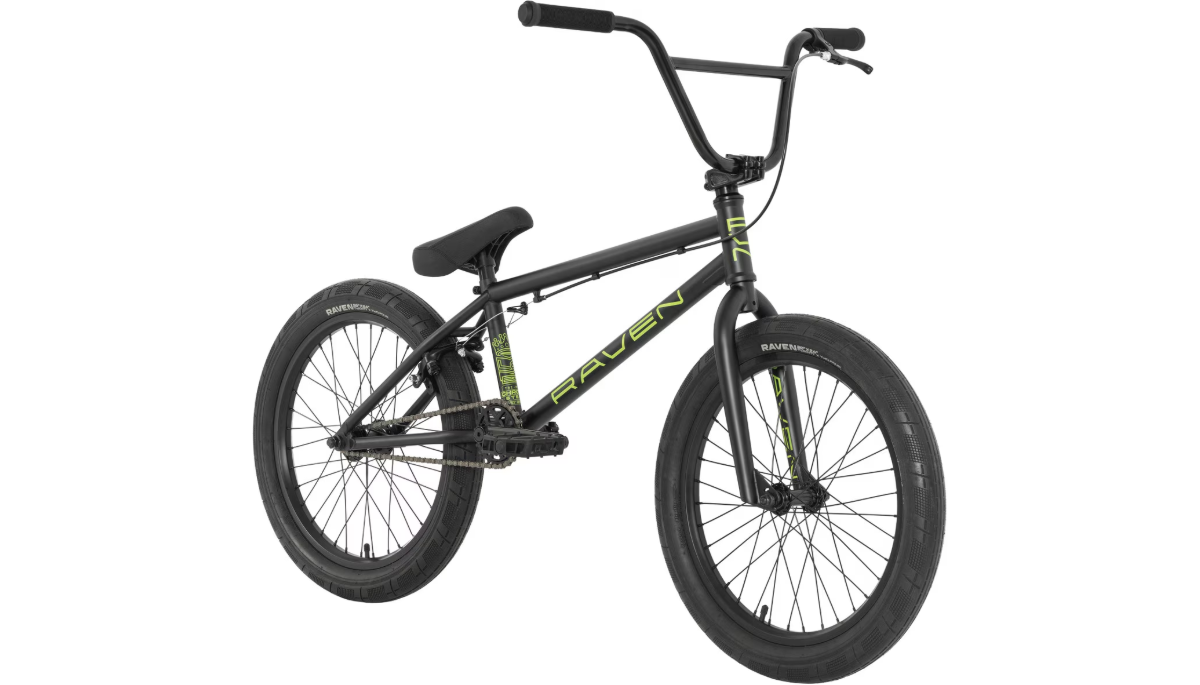

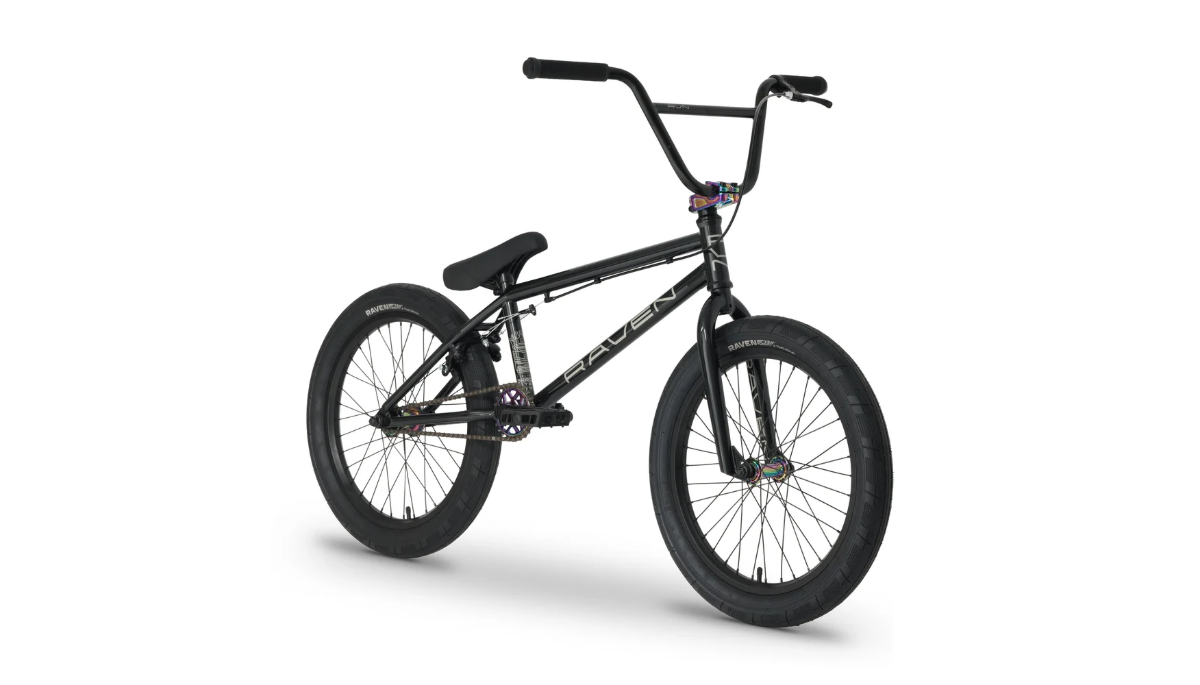

Raven LC 20" BMX Bike (2026)

Featuring a slightly longer frame and refined components, including integrated headset and one-piece seat/saddle, the LC 20” is a legendary bike that will stand the test of time.

Specifications

Frame: Cro-Mo Main frame ( TT,DT,HT,BB,ST) 20.5"

Fork: Cro-mo steerer tube w/ Steel Tapered legs

Cranks: 3 Piece Cro-Mo 170mm

Sprocket: 25T Alloy

Bottom bracket: Sealed MID BB

Pedals: Marble Resin Platform

Rear cog : 9T Freewheel

Chain: KMC

Rims: Alloy Double Wall 36H

Front Hub: Raven Alloy 3/8 Front Sealed

Rear Hub: Raven Alloy 14mm Rear Sealed Bearing

Spokes: 36H, 14g

Tyres: Raven 20 x 2.4

Brakes: Rear Alloy U brake (fitted), front caliper (not fitted)

Brake levers: Alloy

Handlebar: Hi-tensile steel

Stem: Alloy Top Load 4 Bolt

Headset: Integrated sealed

Seat: One piece seat / saddle combo

Seat post: see above

Seat post clamp: Integrated seat clamp
