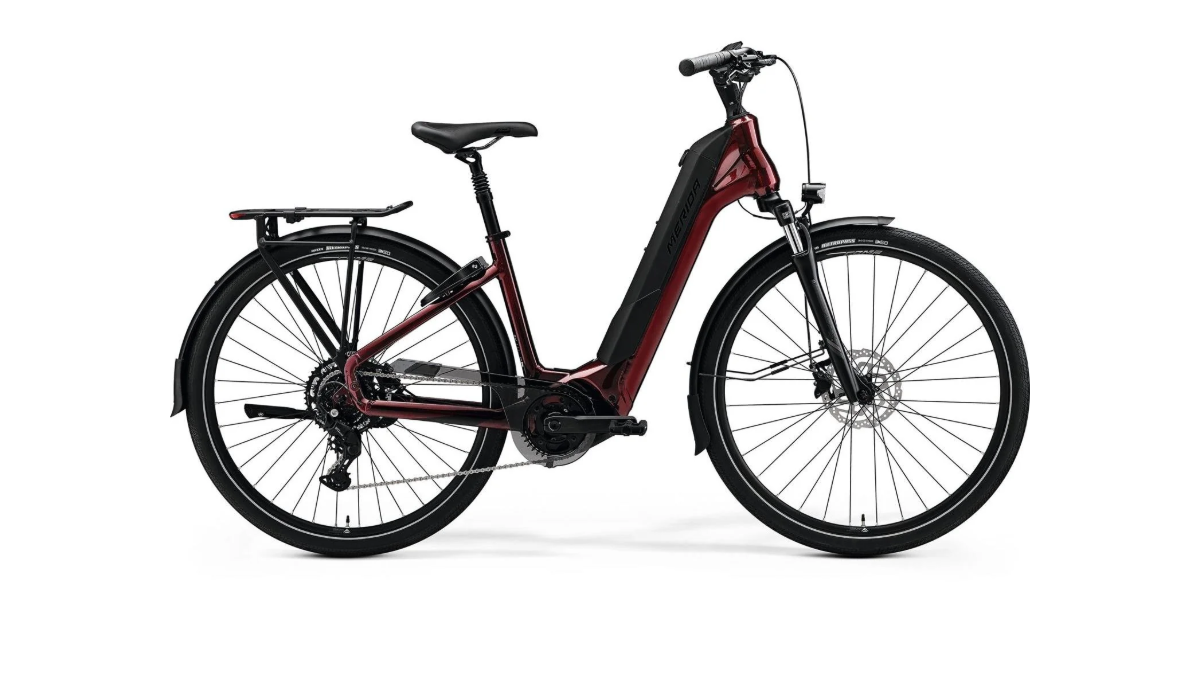

Merida eSpresso City 400 EQ Electric Hybrid Bike (2025)

The eSPRESSO CITY 400 EQ pairs our latest smart and stiff low step-through frame with an internally mounted 504 Wh battery and Shimano's latest powerful EP6 drive unit to deliver impressive function at an even more impressive price. With equipment that's chosen to deliver the best balance of performance and price, it's the smart way to get around the city. Shimano's workhorse 9-speed drivetrain and strong hydraulic brakes won't let you down, while the bike comes fitted with guards, rack, lights, lock and a kickstand as standard, meaning no expensive add-ons are needed to get rolling.

Life in the city can be hectic, so anything that allows you to make the best use of your time has to be a good thing. The eSPRESSO CITY is all about getting you where you want to without fuss and in comfort, thanks to a range of smooth yet powerful pedal-assist motors, a convenient low-step-through frame and standard fit equipment such as lock, mudguards, lights and rack that make navigating urban life that much easier. All models feature the ENERGY CRADLE frame design that holds the 712 Wh, 630 Wh or 504 Wh internal (model depending) battery with an even lower and wider step-through frame with excellent stiffness, plus derailleur or low-maintenance hub gearing options.

Specifications

Model and Identification

·         Product Name: Merida eSpresso City 400 EQ Electric Hybrid Bike 504Wh Battery Burgundy Red/Black

·         Brand: Merida

·         Parent SKU: Merida25eSPRESSOCITY400EQBurgundyRedBlack

·         SKU: MEEB2500214

·         Matrix SKUs: XS: MEEB2500212, SM: MEEB2500213, MD: MEEB2500214, LG: MEEB2500215, XL: MEEB2500216

·         Matrix Barcodes: XS: 25002120212, SM: 25002130213, MD: 25002140214, LG: 25002150215, XL: 25002160216

Summary Information

·         Frame Material: Alloy

·         Frame Style: Step-Through

·         Colour: Red

·         Wheel Size: 700c

·         Brake Type: Hydraulic Disc Brake

·         Gears: 1 x 9

·         Front Travel: Under 100mm

E-Bike Specifications

·         Drive Type: Mid Drive

·         Motor Brand: Shimano

·         Motor: Shimano EP6; 85Nm; 25KPH

·         Torque: 85Nm

·         Battery Size: 504Wh

·         Battery: Shimano EN805-L; 504Wh

·         Maximum Range: 59km

·         Display: Shimano SC-EN500

Build Details

·         Frame: eSPRESSO CITY LITE III MAT aluminium 700x50C with fender; max WHS 135x9 AST internal

·         Fork: Suntour NEX E25; Coil; 63 STR; 700x52C max WHS

·         Handlebars: MERIDA EXPERT; MAT aluminium; 640 WHB; 35 RHB

·         Headset: MERIDA-8254

·         Grips: MERIDA EXPERT TK

·         Stem: MERIDA EXPERT; MAT aluminium; 31.8 DSH; adjustable

·         Pedals: VP VPE-891

·         Saddle: MERIDA EXPERT CT; V-mount

·         Seat Post: JD-SP79; 30.9 DSP; 15 SSB; 40 SST

·         Seat Clamp: MERIDA EXPERT

Wheels and Tyres

·         Wheel Size: 700c

·         Rims: MERIDA COMP TK; 20 IWR; MAT aluminium

·         Tyres: Front: ETB00449900 M2028eP | Rear: (not specified)

Groupset and Components

·         Crankset: MERIDA EXPERT TK; 165mm

·         Chain: Shimano LG500

·         Brakes: Shimano MT200 2 piston

·         Front Rotor: Shimano RT10; 180mm

·         Rear Rotor: Shimano RTEM300M; 180mm

·         Rear Derailleur: Shimano CUES U4000

·         Cassette: 9 Speed
