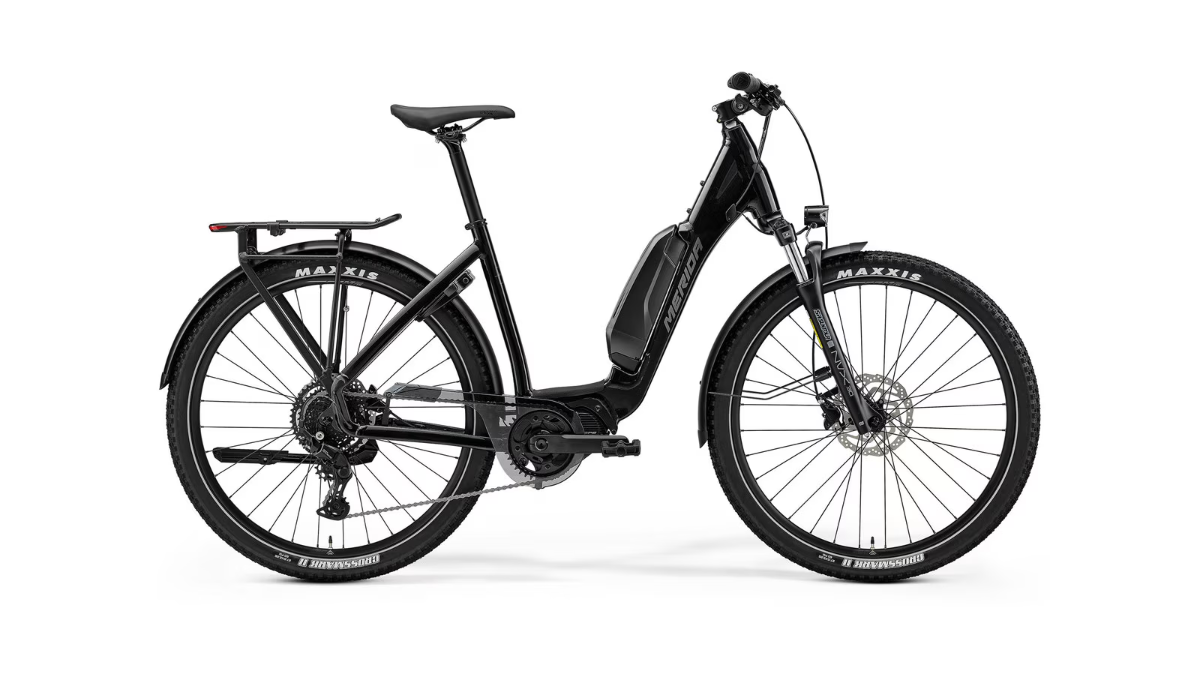

Merida eSpresso CC 300 EQ SE Electric Hybrid Bike (2026)

A low step-through frame with rugged dirt track ability - and all at an amazing price. We've used our know-how to create a quality aluminium frame with great handling, integrating a refined Shimano EP5 drive unit and all powered by an easy-to-remove 418 Wh externally mounted battery. A suspension fork and fat tyres helps to tame the bumps and add control, while hydraulic disc brakes and a quality Shimano drivetrain have the hills taken care of, up or down.

The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Featuring the super-strong low step-through ENERGY CRADLE frame design that gives the bike the necessary rigidity, the eSPRESSO CC models are equipped with a 712, 630 or 504 Wh fully-integrated battery. All come with a refined but powerful Shimano EP6 STEPS pedal-assist motor, delivering 85 Nm of torque. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.

Specifications

Brakes

·         Front: Shimano MT-200, 2 piston

·         Rear: Shimano MT-200, 2 piston

Drivetrain

·         Cassette: Sunrace CSU9, 11-42 ATC, 9 gear

·         Chain: KMC xGlide

·         Crankset: Samox NWP203, 38 ATC, MERIDA EXPERT TK, 165 mm

·         Rear Derailleur: Shimano CUES U4000

·         Shifters: Rear – Shimano CUES U4000

Frame and Fork

·         Frame: eSPRESSO LITE 650, MAT aluminium, suitable for 27.5x2.25" max tyres, 135x9 AST, external, max. 504 Wh

·         Fork: Suntour NVX30 DS, Coil, 80 mm travel, accommodates up to 27.5x2.4" tyres

Contact Points

·         Grip: MERIDA EXPERT TK

·         Handlebar: MERIDA COMP CC, MAT aluminium, 660 mm width, 15 mm rise

·         Stem: MERIDA Expert CT, 31.8 mm diameter, adjustable, XS/S/M – 90 mm, L/XL – 110 mm

·         Headset: MERIDA-2346

·         Saddle: MERIDA Comp TK

·         Seat Clamp: MERIDA EXPERT

·         Seat Post: MERIDA COMP CC, MAT aluminium, 30.9 mm diameter, 0 mm setback

·         Pedals: VP VPE-891

Wheels and Tyres

·         Hubs: Front – Shimano QC300, 100x9 mm; Rear – Shimano QC300, 135x9 mm, both with 32 spokes and Centerlock

·         Rims: MERIDA COMP TK, 20 mm internal width, MAT aluminium

·         Spokes: Black stainless steel, black nipples

·         Tyres: Front and Rear – Maxxis Crossmark II, 27.5x2.25", wire bead, reflective line

Lights

·         Front: Herrmans H-Black MR4 E

·         Rear: Spanninga Commuter Glow XE, integrated into MERIDA MIK HD carrier

Braking Rotors

·         Front Rotor: Shimano RT10, 180 mm

·         Rear Rotor: Shimano RT10, 180 mm

Motor and E-Bike System

·         Motor/Drive Unit: Shimano EP5, 60 Nm torque, supports up to 25 KPH

·         Motor Brand: Shimano

·         Motor Model: STePS EP5

·         Motor Power: 250 Watts

·         Motor Torque: 60 Nm

·         E-Bike Drive System: Mid Drive

·         Display: Shimano SC-EN500

Battery

·         Battery: Shimano EN604, 418 Wh

·         Battery Brand: Shimano

·         Battery Model: Shimano EN604

·         Battery Size: 418 Wh

Colour

Metallic Black (Gunmetal Grey)

Accessories

·         Carrier: MERIDA MIK HD Carrier with Spring clip and Spanninga rear light

·         Fender: Sunnywheel SW-FA-311-65 (MSB)

·         Kickstand: CL-KA100

·         Frame Lock: Abus 4650SL
